Mylinking ™ optical transceiver module SFP + LC-SM 1310NM 10KM
Ml-SFP + SX 10GB / S SFP + 1310NM 10KM LC Ib-hom
Khoom nta
● Txhawb 11.3GB / s ntsis nqi
● Cov Duplex Lc Txuas
● Ntxawg tau kub
Invage Uncation 1310nm DFB transmitter, tus p part duab-ntes
Siv tau rau 10km smf kev txuas
● Tsawg zog noj, <1w
App Digital Digital DeccialCostic Saib Interface
● Kho qhov muag rov zoo rau IEEE 802.3ae 10gbase-lr
● Hluav taws xob interface ua raws SFF-8431
● Kev ua haujlwm rooj plaub:
Commerical: 0 txog 70 ° C Muaj: -40 txog 85 ° C
Cov Ntawv Thov
● 10GBase-LR / LW ntawm 10.3125Gbps
● 10G Fiber channel
● CPRI thiab obsai
● Lwm yam kho qhov muag
Kev Ua Haujlwm Yees Duab
Tsis muaj kev ntsuas ntau
| Chaw ua uas tsis tau haus | Lub cim | Min. | Max. | Ib yam | Tsab ntawv |
| Muab cov khoom siv hluav taws xob | PCC | -0.5 | 4.0 | V | |
| Cia kub | TS | -40 | 85 | ° C | |
| Tus txheeb ze cov av noo | RH | 0 | 85 | % |
Nco tseg: Kev ntxhov siab nyob rau hauv ntau dhau ntawm qhov siab tshaj plaws kev ntsuas yuav ua rau kev puas tsuaj mus tas li rau transceiver.
Cov Kev Ua Haujlwm General
| Chaw ua uas tsis tau haus | Lub cim | Min. | Hom | Max. | Ib yam | Tsab ntawv |
| Cov ntaub ntawv tus nqi | 9.953 | 10.3125 | 11.3 | GB / S | ||
| Muab cov khoom siv hluav taws xob | PCC | 3.13 | 3.3 | 3.47 | V | |
| Muab tam sim no | Tus dej khov nab dej5 |
| 300 | mA | ||
| Kev ua hauj lwm rooj plaub. | Tc | 0 | 70 | ° C | ||
| TI | -40 | 85 |
Cov yam ntxwv hluav taws xob (saum (c) = 0 txog 70 ℃, sab saum toj (i) = -40 txog 85 ℃, vcc = 3.13 rau 3.47 v)
| Chaw ua uas tsis tau haus | Lub cim | Min. | Hom | Max. | Ib yam | Tsab ntawv |
| Kev xa tawm | ||||||
| Cov ntaub ntawv sib txawv hauv viav vias | Tus vinpp | 180 | 700 | mvpp | 1 | |
| Hloov cov hluav taws xob tsis zoo | VD | VCC-0.8 | PCC | V | ||
| KWM HLOOV VEDICAGE | Yug | Txoj leeg | Vee + 0.8 | |||
| Tawm tswv yim kev xav txawv | Rov nrho | 100 | Ω | |||
| Tus txais | ||||||
| Cov ntaub ntawv sib txawv tso tawm hauv viav vias | Vout, pp | 300 | 850 | mvpp | 2 | |
| Cov zis nce lub sijhawm thiab caij nplooj zeeg | TR, TF | 28 | Ps | 3 | ||
| Los lees | Vlos_f | VCC-0.8 | PCC | V | 4 | |
| Los de-assered | Vlos_n | Txoj leeg | Vee + 0.8 | V | 4 | |
Nco tseg:
1. Txuas ncaj qha rau TX cov ntaub ntawv tawm tswv yim pins. AC coupling los ntawm pins mus rau hauv txoj kev tsav tsheb qib laser ic.
2. Mus rau 100 ntev kev txiav tawm.
3. 20 - 80%. Ntsuas nrog cov qauv ua raws cai ntsuas thiab OMA kuaj qauv. Kev siv plaub 1's thiab plaub 0 tus ua ntu zus nyob rau hauv cov PRBS 9 yog kev xaiv tau.
4. Los yog ib qho qhib cov zis tawm. Yuav tsum tau rub nrog 4.7Kω - 10Kω ntawm tus thawj tswj hwm. Kev ua haujlwm ib txwm yog logic 0; Poob ntawm lub teeb liab yog logic 1.
Cov yam ntxwv kho qhov muag (C) = 0 txog 70 ℃, Top (i) = -40 txog 85 ℃, VCC = 3.13 rau 3.47 v)
| Chaw ua uas tsis tau haus | Lub cim | Min. | Hom | Max. | Ib yam | Tsab ntawv |
| Kev xa tawm | ||||||
| Kev ua haujlwm wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. Tso Tawm Lub Zog (Enabled) | Lees xi mees | -6 | 0 | dBM | 1 | |
| Sab-Hom Kev Ntsuas Hluav Taws Xob | Smsr | 30 | dB | |||
| Extinthtion piv | ER | 4 | 4.5 | dB | ||
| Rms lub dav dav | Hn tseem fwv | 1 | nm | |||
| Rose / Caij nplooj zeeg lub sijhawm (20% ~ 80%) | TR / TF | 50 | ps | |||
| Kev Cuam Tshuam | Tdp | 3.2 | dB | |||
| Kev txheeb ze ua suab nrov | Rov nrho | -128 | DB / HZ | |||
| Tso zis kho qhov muag | Raws li IEEE 0802.3ae | |||||
| Tus txais | ||||||
| Kev ua haujlwm wavelength | 1270 | 1600 | nm | |||
| Tus txais kev paub zoo | Psen2 | -14.4 | dBM | 2 | ||
| Ntau dhau | Lees xi mees | 0.5 | dBM | |||
| Los Hais | Pa | -30 | dBM | |||
| Los de-hais | Pd | -18 | dBM | |||
| Los hysteresis | Pd-pa | 0.5 | dB | |||
Sau ntawv:
1. Cov duab hluav taws xob nruab nrab yog cov lus qhia nkaus xwb, rau ntawm ib zaug 802.3ae.
2. Ntsuas ntawm ber tsawg dua 1e-12, rov qab rov qab. Qhov ntsuas ntsuas yog prbs 231-1Nrog phem er = 4.5 @ 10.3125GB / s.
Tus pin cov lus txhais thiab ua haujlwm
| Rab koob | Lub cim | Npe / Cov Lus Qhia |
| 1 | Veet [1] | Cov Khoom Siv Hluav Taws Xob |
| 2 | TX_FRAUL [2] | Lub tshuab xa tawm |
| 3 | TX_DIS [3] | Lub tshuab xa tawm. Laser tso tawm tsis taus rau qhov siab lossis qhib |
| 4 | SDA [2] | 2-hlau serial interface cov ntaub ntawv kab |
| 5 | Scl [2] | 2-hlau serial interface moos kab |
| 6 | Mod_abs [4] | Module tsis tuaj. Nyob rau hauv av nyob rau hauv lub module |
| 7 | Rs0 [5] | Tus nqi xaiv 0 |
| 8 | Rx_los [2] | Poob ntawm teeb liab qhia tau. Logic 0 qhia tau tias ib txwm ua haujlwm |
| 9 | Rs1 [5] | Tus nqi xaiv 1 |
| 10 | Veer [1] | Tus txais av |
| 11 | Veer [1] | Tus txais av |
| 12 | Rd- | Tau txais cov ntaub ntawv inverted tawm. Ac coupled |
| 13 | RD + | Cov ntaub ntawv tau txais. Ac coupled |
| 14 | Veer [1] | Tus txais av |
| 15 | VCCR | Tau Txais Khoom Siv Hluav Taws Xob |
| 16 | VCCT | Lub tshuab xa khoom fais fab |
| 17 | Veet [1] | Cov Khoom Siv Hluav Taws Xob |
| 18 | Td + | Cov ntaub ntawv xa tawm hauv. AC Coupled |
| 19 | Td- | Cov ntaub ntawv invitter rau hauv. AC coupled |
| 20 | Veet [1] | Cov Khoom Siv Hluav Taws Xob |
Sau ntawv:
1. Module Circuit av yog cais los ntawm cov hluav taws xob hluav taws xob chasis hauv lub module.
2. Yuav tsum tau rub nrog 4.7k - 10k ohms ntawm tus tuav vaj tsev pab pawg rau lub voltage ntawm 3.15vand 3.6v.
3. TXUX_DISable yog ib qho lus qhia tiv tauj nrog 4.7 Kω rau 10 Kω rub tawm rau VCCT hauv module.
4. Mod_abs tau txuas rau veet lossis verer hauv SFP + Module. Tus tswv tsev yuav rub tawm cov kev sib cuag no mus txog vcc_host nrog ib tug resistor nyob rau hauv ntau li no 4.7 Kω rau lub SFP + siab "thaum lub SFP + lub cev tsis tuaj ntawm tus tswv tsev.
5. RS0 thiab RS1 yog module Inputions thiab tau rub qis rau veet nrog> 30 kω tiv taus hauv module.
Serial interface rau daim ID thiab Digital kuaj xyuas
SFP + SX Transceiver pab txhawb lub 2-hlau serial kev sib txuas lus raws li tau hais tseg hauv SFP + MSA. Tus txheej txheem SFP + Serial ID muab kev nkag mus rau cov ntaub ntawv qhia txog kev txheeb xyuas tus mob Transceiver, cov qauv kev tsim qauv, thiab lwm yam ntaub ntawv. Ib qho ntxiv, SFP + Transceivers muab cov kev ntsuas digital digital digital digital digital cov kev siv hluav taws xob zoo li no, cov khoom siv kho kom zoo dua qub, tau txais lub zog kho qhov muag, tau txais hluav taws xob kho tshiab thiab hloov kho qhov muag. Nws tseem txhais tau cov txheej txheem ntawm lub tswb ceeb toom ntawm lub tswb thiab cov lus ceeb toom kawg uas yog cov kev ua haujlwm tshwj xeeb yog sab nraud ntawm lub Hoobkas tsim ntau yam.
SFP MSA txhais txog 256-byte nco txog 256-byte kev soj ntsuam ntawm 2 qhov chaw nyob ntawm lub sijhawm 8-a) Tus qauv ntawm daim duab ceeb toom nco tau qhia hauv Tab1.

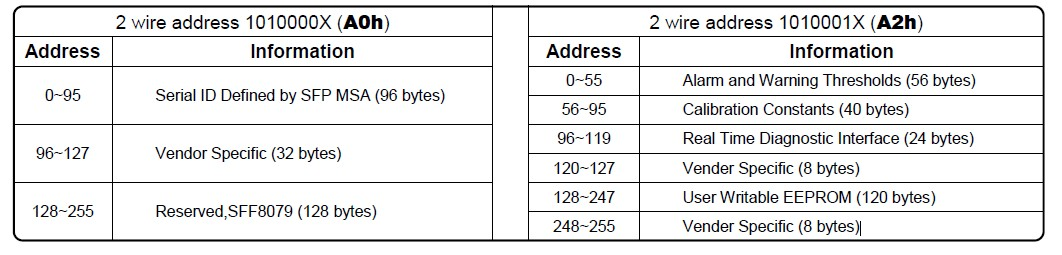

Rooj 1. Digital Daustomost Memen Daim Ntawv Qhia (cov lus piav qhia tshwj xeeb cov ntaub ntawv piav qhia)
Digital Catificotic Specifications
SFP + SX transceivers tuaj yeem siv rau hauv cov tswv yim tshuab uas yuav tsum tau siv sab hauv lossis sab nraud ntsuas digital digital.
| Chaw ua uas tsis tau haus | Lub cim | Tej nyob | Min. | Max. | Kev ua yog | Tsab ntawv |
| Kev hloov ntsuas kub | DTEMP-E | ºC | -45 | +90 | ± 5ºC | 1,2 |
| Transceiver muab voltage | Dvoltage | V | 2.8 | 4.0 | 3% | |
| Transitter khoom tam sim no | Dbias | mA | 2 | 80 | ± 10% | 3 |
| Cov khoom xa tawm fais fab | DTX-Hwj chim | dBM | -7 | +1 | ± 2db | |
| Tus txais nyiaj nruab nrab lub zog | Drx-hwjchim | dBM | -16 | 0 | ± 2db |
Sau ntawv:
1. Thaum kev ua haujlwm temp. = 0 ~ 70 ºC, qhov ntau yuav yog min = -5, max = + 75
2. Ntsuas kev ntsuas
3. Qhov tseeb ntawm tus mob ntsws tam sim no yog 10% ntawm qhov tseeb tam sim no los ntawm Laser tsav tsheb mus rau laser
Raug interface Circuitfion
Pom zoo fais fab lim
Nco tseg:
Inductors nrog DC tsis kam ntawm tsawg dua 1ω yuav tsum tau siv txhawm rau txhawm rau tswj cov voltage uas yuav tsum muaj ntawm SFP Young PIN nrog 3.3V cov khoom siv hluav taws xob. Thaum cov khoom siv hluav taws uas pom zoo siv lub network siv, kub ntsaws ntawm SFP Transceiver macule yuav ua rau muaj ntau dua 30 ma ntau dua lub xeev khov kho tus nqi
Ntim qhov ntev
